Automated Perimeter Model: AP-100
Auto perimeter is also called perimetry, or visual field analyzer. It is used to examine the visual field which can be affected by eye diseases, such as glaucoma, retinal camera, optical nerve disease, or brain surgery.
Auto perimeter applications:
- Ophthalmic hospitals or clinics
- Optical shops
- Driver vision testing
- Disability assessment center
- Physical examination center
Besides auto perimeter, Hongdee has others ophthalmic testing equipment, like slit lamp, fundus camera, rebound tonometer, NCT, OCT and so on. Please contact us request for our latest price.
- Model: AP-100
- Technical Datasheet
- Certificates
The AP-100 visual field analyzer/ auto perimeter is the perfect ophthalmic diagnostic equipment for anyone who wants to conduct the visual field test for the sake of evaluating the overall vision loss situation correlated with different eye diseases, particularly glaucoma.
The AP-100 auto perimeter performs the standard white-on-white threshold testing in full compliance with Goldman standards, which makes it possible to do standard central and peripheral visual fields with minimum test duration, With its rich built-in features, the AP-100 is easy-to-use and delivers the test results you can rely on.
| Model | AP-100 |
| DB Value Range displayed | 0~40db |
| Stimulus Intensity Range | 1asb~10000asb |
| Stimulus Size | Goldmann III |
| Stimulus Color | White |
| Stimulus Duration Time | 200ms/ Adaptive |
| Max Measurement range | 90° |
| Test Distance | 30cm |
| Test Mode | Static |
| Stimulus quantity | 456 points |
| Stimulus Plane | Aspherical surface |
| Background Illumination | White 31.5 asb ( 10cd/m2 ) |
| Customize test program | ● |
| Auto eye recognition | ● |
| Blind zone range test | ● |
| Stimulus Source | LED |
| Chinrest Control | Touch Screen,Keyboard and mouse control,Button control |
| Head Movement | Chinrest and forehead-rest move simultaneously |
| CPU:1.6 GHz; RAM: 4 GB; | |
| PC Configuration | Hard disk: 120 GB; |
| Operation system: Windows 10; | |
| LCD:14 ” Capacitive Touch screen; | |
| Networking: Ethernet & WIFI; | |
| Dimension | 480mm(L)*430mm(W)*528mm(H), 14kgs |
| Packaging | 550mm(L)*480mm(W)*640mm(H), 19kgs |
| Others | Input Voltage: AC 100 – 240V,50 ~ 60Hz |
Notice: Undefined variable: counter in /home/xoeqh5xztj6s/public_html/hongdeecorp.com/wp-content/themes/astra-child/product-details3.php on line 103
Notice: Undefined variable: counter in /home/xoeqh5xztj6s/public_html/hongdeecorp.com/wp-content/themes/astra-child/product-details3.php on line 121

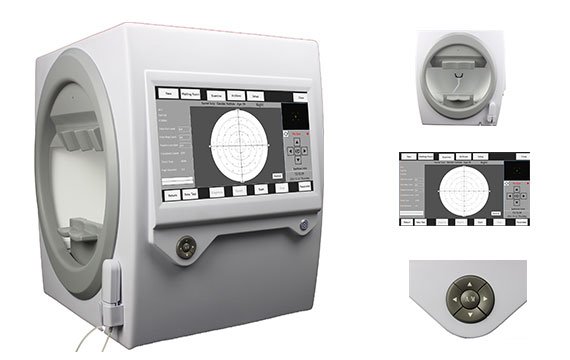

AP-100 Auto Perimeter Functions
1. Right Side:
- 4 USB ports: connect a mouse, and keyboard, and plug in USB to transfer files.
- 1 main power switch; ethernet port available for internet
- wireless internet module built inside as well. Can connect to WIFI.
2. Front side
14″ capacitive wide touch screen, windows system built-in power button right located beneath the screen for easy reach. Chin rest adjustment buttons left side to control the chinrest.
3. Patient side
- Responsive button
- Eyepatch for the patient’s test
- Synchronized movement of chin rest and headrest
- auto alignment controlled by the software
- correction lens holds available to seat lens.
Notice: Undefined variable: counter in /home/xoeqh5xztj6s/public_html/hongdeecorp.com/wp-content/themes/astra-child/product-details3.php on line 133
Auto Perimeter Features
- The easy-to-set-up overall design combined with auto/manual eye alignment reduces the test time by leaps and bounds.
- Modulized design of mechanical and structure for easy maintenance and parts replacement
- An intuitive and straightforward touchscreen interface facilitates the operation by simply inputting the patient’s name, gender, and age, it will be ready for testing.
- Built-in Voice prompts and voice tutorial function tremendously increase the operator’s working efficiency and reduce the workload, meanwhile, effectively guiding the patients to follow the procedure during the test.
- A wide array of testing options up to 22 programs cover the majority of different eye disease related with vision field.
Auto Perimeter Software Representation
- Blind Zone Test Uniquely developed Blind Zone Test program, which has significant meaning for the judgment of optic disk inflammation and edema.
- Driver test of Horizontal 150° Besides of Esterman Test program, another special Horizontal 150°program is for the testing driver who has visual impairment of a single eye.
- Test programs application for Neurological eye disease
Efficient Test strategies
Efficient Test strategies = Reduce Test time + Accuracy
The test strategies fully consider different age groups, responsiveness, visual field defects regularity, and the distribution of the field island, providing a faster solution for perimetry testing which is Smart, Intelligent, and interactive.
Classic Test report
Test report in Classic format, can be easily read and understand by doctors world widely.
Related Ophthalmology Equipment
Complete Questions and Answers for Auto Perimeter
No, this auto perimeter is in one system, it has the operating system and software built into it, besides, it also has a 14” touch capacitive screen which tremendously increases the operational efficiency.
The unique feature of this auto perimeter is that it has voice prompts and voice tutorials which can reduce the workload of doctors and meanwhile guide the patient to follow the test procedure effectively.
Besides, it also has the binocular test report which allows the doctors to do a comparison of both eyes for better evaluation based on the test result.
It has test programs up to 22.
This is a Static Perimeter. Kinetic Perimeter is used to detect the visual field range of a patient quickly, while the static Perimeter is mainly used for qualitative and quantitative detection of test points in the field of view. What is more needed in clinical applications is static visual field detection.
The Light source of this Perimeter is LED. Compared with Halogen light source, it is more stable and with a longer lifetime, during the whole lifetime of Perimeter, calibration, and replacement is not needed at all.
Visual field examination is not the most important method for diagnosing and monitoring retinal diseases. But retinal diseases like retinal detachment and retinal splits can cause visual field defects, and because these defects are usually located in the peripheral visual field, they can not be found in the conventional central visual field test. The maximum measurement range of this Perimeter is up to 90°, compared to another brand Perimeter which is with only a 30° measurement range, only our Perimeter is applicable for the above retinal disease test.
Driver license verification programs of International standards are included in this Perimeter, which are Esterman Binocular and Esterman Monocular.
A full Index for glaucoma evaluation is provided with test reports like GHT and VFI.
Turn on the automatic eye position tracking, automatic eye position recognition, voice teaching, and voice guidance function of this perimeter. After the test starts, let this perimeter monitor the patient’s examination process and guide the patient to cooperate in the examination instead of the hospital doctor/nurse.
