Manual Lensmeter
Manual lensmeter is a very compact and stylish device that facilitates measuring the lens, particularly in the vertical direction. Manual lensmeter is widely applied in the laboratory, or lens factory.
The model in Hongdee named Swan Pro manual lensmeter, has some features listed more than other suppliers.
- Ease to operate from multiple angles. You can enjoy the full 90 degrees inclination to check the range and accuracy of your lens
- A prism compensator is available to meet your necessities.
- It contains external power and axis reading along with halogen illumination and AC operation.
Besides manual lensmeter, digital auto lensmeter is also an upper-level standard product in Hongdee.
Manual Lensmeter

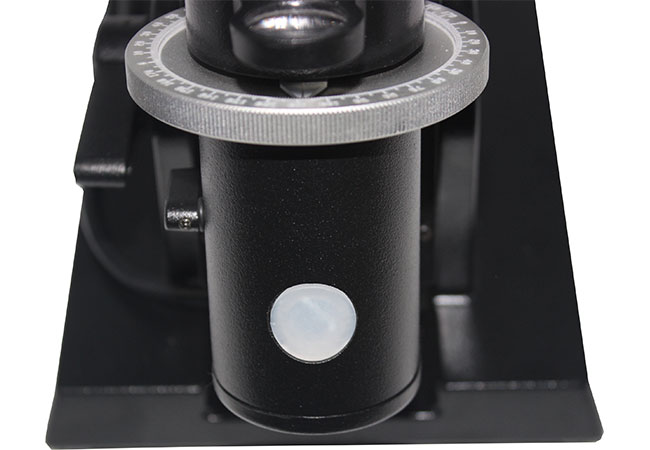

The Swan Pro manual lensmeter has the external power and axis reading, halogen illumination, (LED illumination is optional) AC operation as standard configuration. It also has the prism compensator as an option to meet different needs. It covers the measurement of the lens from 30mm to 90mm in diameter. It is an ideal device for lab and office use.
- Full 90-degree inclination design for ease of measurement of the lens;
- Two types of illumination are available, standard halogen and LED illumination available upon request.
- A magnification lens is available for the ease of checking the scale value of the axis.
- Diopter is marked in two colors (black and red) for easy differentiation.
- External power and axis reading.
- A prism compensator is available as an option.
-
Manual Lensmeter Set -
Diopter Reading -
Halogen Illumination -
Lens Holder Device -
Magnification Lens -
Marketing Level -
Prism Compensator
Manual Lensmeter Specifications
| Range of diopter measurement | 0D to ±20D |
| Minimum scale value | 0.125D at 0D to ±5D, 0.25 at ±5D to ± 20D |
| Astigmatism axis of the cylindrical lens | 0 to 180°, minimum scale value 5° |
| Prism base angle | 0 to 180°, minimum scale value 5° |
| Regulation of ocular visibility | ±5D |
| Size of lens | 30MM to 90MM |
| Overall dimensions of the device | 46*17*24 (CM) |
| Lighting lamp | 220V 25W/110V 25W |
Manual Lensmeter Customer Testimonials

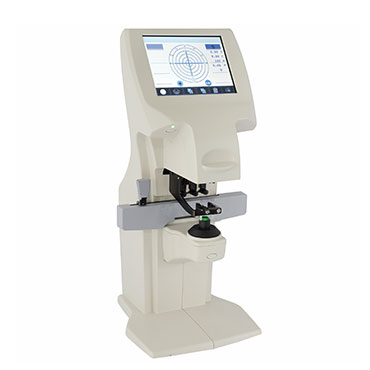

Digital Auto Lensmeter
- 5.6″ touchscreen size
- PD, UV, and blue-ray test
- Bluetooth connection with a smartphone to transfer data
- Thermal printer
- Metal base
- Same accuracy as Nidek LM-7 at a competitive price.
- 5.7″ touchscreen size
- PD, UV, and blue-ray test
- Thermal printer
- Metal base
- 7″ touchscreen size
- PD, UV measurement
- With or Without a thermal printer
- Plastic base
- Cheap price
