Ophthalmic Exam Chair
There are two ophthalmic exam chair types in Hongdee to place various ophthalmic stand models, mainly EC and HD-RC rotate chairs.
- EC: 460mm-600mm Elevation range
- HD-RC: 580mm-730mm Elevation range
Hongdee provides a complete ophthalmic chair unit for distributors or ophthalmologists. Also, we support replacing old the ophthalmic exam chair according to your ophthalmic stand size. For any ophthalmic exam chair questions, you can contact us directly. I trust Hongdee can solve your problems and share a new solution.
HD-RC Ophthalmic Exam Chair Features
- Upholstered and individually retractable armrest for ease of use;
- High-tech leather is easy to clean and wear-proof and can withstand heavy use for many years. It is available in 4 different colors to meet other doctor’s needs;
- High-density foam material provides offers more comfort during the whole exam than the traditional sponge material—no distortion after heavy use.
- Rotation to the right and left side for 45 degrees.
- Foldable foot pedal for easy operation.
- Compatible with all of the Hongdee ophthalmic refraction units.
Ophthalmic Exam Chair Specifications
- Angle of rotation for chair: ±60°
- Lifting height for chair: 460-600mm
- Loading for chair: 150kgs
- Lifting height for pillow:≤150mm
- Backrest obliquity: 90°-135°
- Input voltage: 230V±10%
- Engine power: 140W
- Fuse: 5A 250V
- Figure size: 700mm×900mm×1400mm
- Weight: 60kgs
- Material: PVC
- Up and down moving range; 568-708mm
- Chair rotation angle: 0-270°
- Backrest adjustment angle: 80°-180°
- Headrest is adjustable in a semicircle area of 250mm radius.
- Chair max load: 150kgs
- Figure size: 1884mm×1316mm×1663mm
- Material: Leather
| Elevation range | 580mm-730mm |
| Rotation | 45 degrees to the left and right |
| Package | 77x85x119cm |
| GW | 90kgs |
- How To Get One Suitable Ophthalmic Exam Chair Price
- Confirm your ophthalmic exam chair applications, or whether compatible with ophthalmic refraction unit or not.
- Tell us your needs, click the button “send inquiry ” to fill out the form, then we will quote. Or, email or WhatsApp directly to save more time.
EC-100 With HD-700A Ophthalmic Chair Unit
- Recline bar control available to fully tilt the chair to a maximum angel of 90 degrees;
- One chair lock allows for max 360 degrees rotation.

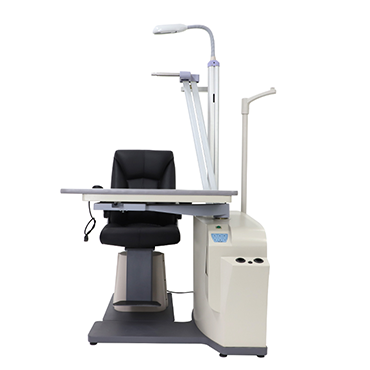

HD-RC With Ophthalmic Chair Unit
In Hongdee, HD-RC ophthalmic exam chair is compatible with HD-3200, HD-700C, HULK, and Titan ophthalmic refraction unit. Meanwhile, we can customize the ophthalmic exam chair size or type according to your needs.
